DATA CENTER INFRASTRUCTURE -

Channel Systems manufactures our patent-pending Zone Wall™ panelized system for highly effective cold aisle and hot aisle containment. Inferior containment solutions may cause servers to leak cold air into the hot air stream at a rate 25%-130% of their designed flow rate which causes a real world impact on the annual energy cost to operate a data center. Numerous panel types are available such as aluminum honeycomb, insulated panels, or clear/opaque plastic. The system is easily installed and creates a properly sealed joint against walls, ceilings, servers, and other data center equipment.

Zone Wall™ also integrates with our modular single and sliding doors. Strips can also be substituted into our top track extrusion if requested. You can mix and match panels, doors, and strips to fit your specific company needs. A complete line of accessories is available.

CEILING SYSTEMS –

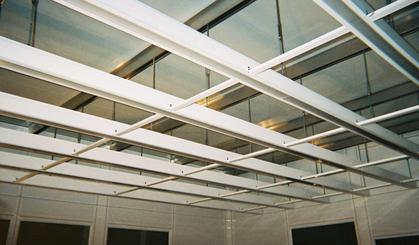

Channel Systems manufactures 24 distinct ceiling grids from light-weight aluminum non-walkable to walkable heavy-duty systems that achieve spans up to 32'. Our seamless environment ceiling systems have several distinct features.  Our UL Listed AD2000 Walkable Flush Grid with LED Integral Lighting maximizes light by evenly distributing it across the entire room. This reduces eye strain and eye fatigue for your scientists and technicians. It uses less energy, provides greater luminosity and reduces replacement costs. Our CG7700 Walkable System is rod-hung, maximizes R-value and minimizes STC. Fire-rated panels up to 3-hrs are also available.  All systems can incorporate sprinkler and utility drops that are FM approved.  Channel Systems' 2” Tech Grids give you walkable gasketed and gel ceiling systems that are also rod hung. Channel Systems'  CG3500 2” Tech Grid Light Weight system  is available for lower cost solutions, costs about the same price as regular T-bar, but is much cleaner and doesn’t break down at intersections over time. Blank panels can be made from any of our standard products. Ask about our 4’x 12’ ceiling blanks to save you money

FILTERS –

Channel Systems Cleanrooms can provide a complete range of Camfil Hepa Filters from any one of our manufacturing plants. We also provide Envirco Mac10 FFU’s (Fan Filter Units). RSR (Room side replaceable) filters are usually the best choice for Life Science projects. Mac10 IQ allows increased controllability with digital control. Modbus monitoring and control system can integrate with building management systems. We also make our own FFU’s from our Malaysian factory.

DOORS & WINDOWS –

Channel Systems manufactures a complete line of flush glass, aluminum, stainless steel, Kydex, Fiberglass, PVC, and HPL doors.  Internal or external multiple door hardware options are available, including automatic w/ motion sensors, card reader, and magnetic/solenoid bolt interlocks. Window options include single and double flush glazing glass, safety and UV-filtration glass, or full-height seamless window wall for high visibility areas. We can also provide high-speed zip doors for life science projects. Custom sizes on all doors are always an option.

WALL SYSTEMS –

 Channel Systems’ patented high-end products for Class 1 semiconductor projects can meet any stringent requirement worldwide. Our aluminum honeycomb core wall panels are zero outgassing and Class A/1/O fire rated. All coved wall, Seamless Partitions 2.0, 4.0, and 5.0 allow multiple options in function and cost. All coved transitions between floor, walls and ceiling can be extruded aluminum components, welded, rubberized or caulked. Finishes include:  Stainless steel; PVC vinyl; Kydex, Polypro; HPL; Aluminum, or steel with antimicrobial epoxy paint. Rubberized or aluminum tread plate, Polypro and PVC can be used for high impact areas. Our Seamless Partitions also have four different sized utility studs to incorporate pre-plumbed/pre-wired utilities anywhere in the room. This allows for last minute or future changes of equipment. Other core options available are Polyisocyanurate (PIR), Polyurethane (PU), Rockwool, expanded PVC, Polystyrene, Melamine, and Phenolic Resin. Our Rockwool core product is available in 1, 2, and 3 hour ratings.

MODULAR ROOMS –

Channel Systems' seamless environments are a single source solution to your Electronic and Life Science facilities needs.  Through our worldwide manufacturing group, we have the fastest lead times in the Industry. Channel Systems Cleanrooms can deliver ISO1 - 9 cGMP Modular Cleanrooms and Biosafety level (BSL) 1- 4 from simple stand alone units to new environments incorporated into your existing facility. All our products are Class 1 compatible, of the highest quality and are multifunctional to adaptable to the future needs of your company. All finished materials meet electronic zero outgassing and FDA stringent requirements. Turnkey solutions include: Complete design & architectural drawings; Energy efficient HVAC systems; Positive or negative pressurized rooms; Ducted or motorized HEPA filters (FFU) to 99.999% efficient @ .12 mu; Full controls package with remote monitoring and alarm integration; electrical, plumbing, fire protection, as well as certification and validation.

VLF & EXHAUST HOODS, BIOLOGICAL SAFETY CABINETS, AND FURNITURE - Channel Systems Manufactures and reps a number of Vertical Laminar Flow Hoods, Biological Safety Cabinets, Exhaust hoods and Furniture that meet your needs for localized control for critical processes. Our Laminar Flow Hoods can be vertical or horizontal flow. Positive and negative pressure. Adjustable and removable work surfaces and sashes are just two of the options available. Our 100 % Stainless Steel units come with Spill guards in rear and sides of work area to protect Hepa filters and side panels. Curved forearm supports, UV lighting and non-glare lighting are standards for all units. Electrical outlets and gas cocks are also available inside the work space. IV bars with hooks are an option for pharmaceutical use. All units meet or exceed ISO Class 5/Class 100 airflow and IES recommended Practice for Laminar Flow Clean Air Devices. All units are NRTL listed with MET Labs to comply with UL1262. Our Biological Safety Cabinets safely handle potentially harmful pathogens and drugs and have Stainless Steel surfaces inside and out. They also meet USP797 requirements for compliance. Channel Systems can also supply a number of standard and custom sized fume hoods to protect the operator from fumes, gases, and vapors. We also make 100 % Polypropylene construction units with vented base cabinets when working with high acids is a must. Hepa filtered gown storage units, lab and instrument tables, and shelving products are also available in standard and custom sizes.

R/A SHAFTS, GRILLES, AND PENETRATIONS -
Channel Systems Clean Rooms can supply Return Air Walls/Modules with Grilles and Dampers. RAM’s (Return Air Modules) can be free standing anywhere in a room or can be attached to the outside walls to provide extra cleanroom space. Coupled with US600 Utility Studs, we can provide unlimited flexibility with HVAC, elect, process piping and data. Our Cable Grommets allow you to keep existing electrical points and access them from the new Cleanroom.

PLENUM CAPS –
Our extremely strong and walkable PLENUM CAP SYSTEM compliments our HVAC designs to meet critical temperature and humidity demands.  Channel Systems Plenum Caps are strong enough to support filters, FFU’s, blank panels, as well as HVAC equip. We can complete these systems with non-skid treadplate surfaces and easy removable handrails.

SOFTWALL SYSTEMS – Channel Systems offers class levels ISO 9 to ISO 1 Softwall enclosures in standard 8’x 8’, 10’x 10’, 12’x 12’, or customized for your company’s needs.  The enclosures are shipped in kit form and can be assembled in minutes. Whether its strips to divide work areas, softwall welded seam panels, or complete rooms with HVAC, we can offer great value at reduced prices.

OPERATING THEATERS -
Channel Systems provides the complete interiors of Operating Theaters, CST, Pharmacy, IV Labs, and standard laboratories for the hospital and health care industries. Products include wall cladding, coved partitions, ceilings, FFU’S, LED lighting, and Zone Wall air directional panelized system. Also includes lead lined partitions for x-ray rooms. There are many finishes to choose from.
